Dual Thermostat
Product name : Dual Thermostat
Item : ZR 011
Details :
|
|
- Two thermostats in one unit
- one Normally Closed (NC) & one Normally Open (NO)
- or two Normally Open (NO)
- Each with wide adjustable temperature range
- Available with °F or °C scale
- DIN rail mountable

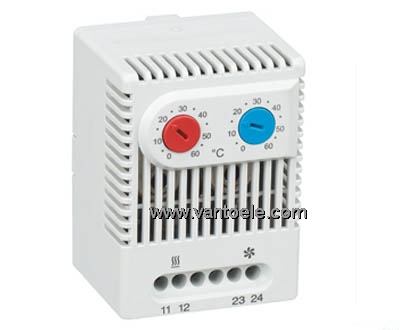

The ZR 011 houses two separate thermostats, allowing the independent control of heating and cooling or other equipment. Both thermostats offer wide adjustment ranges and are color coded for easy function recognition.
|
Technical Data
|
Sensor element
|
Thermostatic bi-metal
|
|
Maximum tolerance
|
+/- 7.2°F (4K)
|
|
Switching difference (hysteresis)
|
12.6°F +/- 5.4°F (7°C +/- 4K)
|
|
Switching capacity (max. load)
|
NC: 10A resistive/2A inductive @ 250VAC
|
|
NO: 5A resistive/2A inductive @ 250VAC
|
|
DC 30W
|
|
Minimum load
|
20 mA (all voltages)
|
|
EMI/EMC compliance
|
EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
|
|
Connections
|
4-pole terminal for AWG 14 max. (2.5 mm²)
|
|
Mounting
|
Clip for 35mm DIN rail (EN50022)
|
|
Dimensions (H x W x D)/wegiht
|
2.6 x 2.0 x 1.8" (67 x 50 x 46 mm) 90 g
|
|
Housing
|
Plastic, UL 94V-0
|
|
Protection type
|
IP20
|
|
Operating temperature
|
-4 to 476°F (-20 to 80°C)
|
|
Storage temperature
|
-49 to 158 °F (-45 °C to 70 °C)
|
|
Part No.
|
Setting range NC
|
Setting range NO
|
Setting range NO
|
|
01172.0-01
|
32 to 140 °F
|
32 to 140 °F
|
-
|
|
01175.0-01
|
14 to 122 °F
|
68 to 176 °F
|
-
|
|
01172.0-00
|
0 to 60 °C
|
0 to 60 °C
|
-
|
|
01175.0-00
|
-10 to 50 °C
|
20 to 80 °C
|
-
|
|
01176.0-00
|
-
|
0 to 60 °C
|
0 to 60 °C
|
|
01176.0-01
|
-
|
32 to 140 °F
|
32 to 140 °F
|
Example of Connection & Dimensioned Drawing
|
Thermostat & Heater
Switching Power Supply
