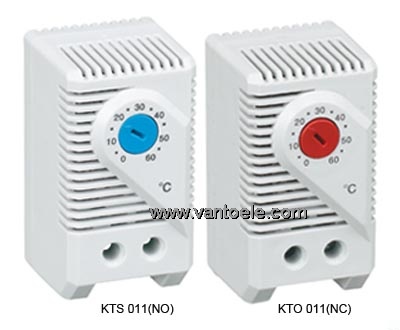

Small, Compact Thermostat
Product name : Small, Compact Thermostat
Item : KTS 011/KTO 011
Details :
|
|
- Large setting range
- Small size
- Simple to mount
- High switching performance

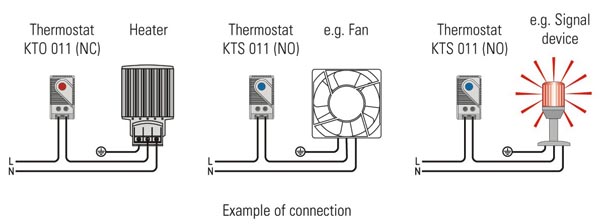

KTO 011: Thermostat (normally closed); contact breaker for regulating heaters.
KTS 011: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded
|
Technical Data
|
Switch temperature difference
|
7K (± 4K tolerance)
|
|
Sensor element
|
thermostatic bimetal
|
|
Contact type
|
snap-action contact
|
|
Contact resistance
|
< 10mOhm
|
|
Service life
|
> 100 000 cycles
|
|
Max. switching capacity
|
250VAC, 10 (2) A
|
|
120VAC, 15 (2) A
|
|
DC 30W
|
|
EMC
|
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
|
|
Connection
|
2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
|
|
Mounting
|
clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series)
|
|
Casing
|
plastic according to UL94 V-0, light grey
|
|

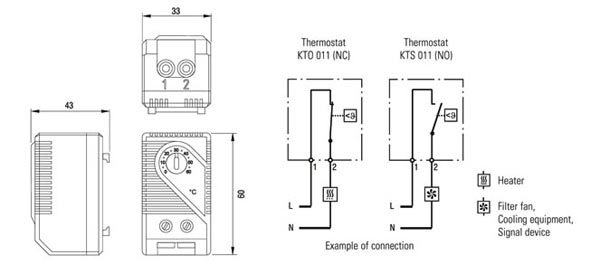

Dimensions/weight
|
60 x 33 x 43mm approx. 40g
|
|
Fitting position
|
variable
|
|
Operating/Storage temperature
|
-20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F)
|
|
Protection type
|
IP20
|
|
Setting range
|
Art. No. Contact breaker (NC)
|
Art. No. Contact breaker (NO)
|
|
0 to +60°C
|
01140.0-00
|
01141.0-00
|
|
-10 to +50°C
|
01142.0-00
|
01143.0-00
|
|
+20 to +80°C
|
01159.0-00
|
01158.0-00
|
|
+32 to +140°F
|
01140.9-00
|
01141.9-00
|
|
+14 to +122°F
|
01142.9-00
|
01143.9-00
|
|
0 to +60°C
|
01146.9-00
|
01147.9-00
|
