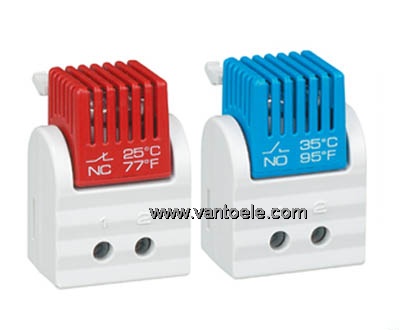

Tamperproof Thermostat
Product name : Tamperproof Thermostat
Item : FTO 011/FTS 011
Details :
|
|
- Compact design
- Fixed setpoints
- Color coded modules
- DIN rail mountable

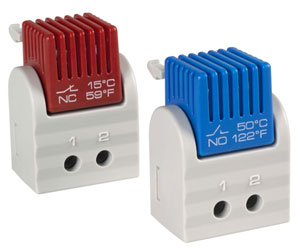

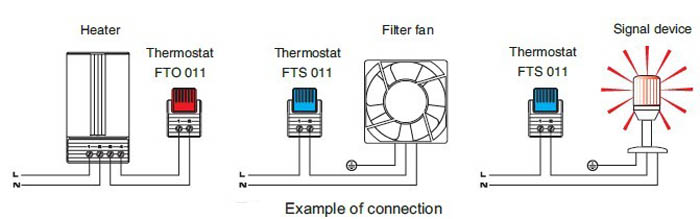

FTO 011NC / opens on temperature rise (redmodule housing) - for regulating heaters or for switchingsignal devices when temperature has fallen below the minimum value.
FTS 011NO / closes on temperature rise (bluemodule housing) - for regulating filter fans, heat exchang-ers, cooling devices or for switching signal devices when temperature limit has been exceeded.
|
Technical Data
|
Sensor element
|
thermostatic bimetal
|
|
Contact type
|
snap-action contact
|
|
Contact resistance
|
< 20mΩ
|
|
Service life
|
> 100 000 cycles
|
|
Max. switching capacity
|
10A resistive/ 2A inductive @ 120VAC
|
|
5A resistive/ 1.6A inductive @ 240VAC
|
|
DC 30W
|
|
Max. inrush current
|
AC 10A
|
|
EMC
|
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
|
|
Connection
|
2-pole terminal for AWG 14 max.(2.5mm2), torque 0.8Nm max
|
|
Housing
|
plastic, UL 94V-0, light grey
|
|
Mounting
|
clip for 35mm DIN rail, EN60 715
|
|
Mounting position
|
vertical
|
|
Operating temperature
|
-4 to +176°F(-20 to +80℃)
|
|
Storage temperature
|
-49 to +176°F(-45 to +80℃)
|
|

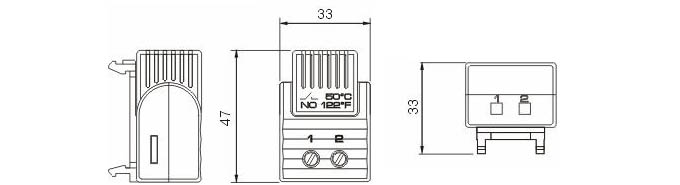

Dimensions/weight
|
1.85 x 1.3 x 1.3" (47x33x33mm) approx. 23g
|
|
Protection type
|
IP20
|
|
Part No.
|
Contact
|
Switch-off temperature
|
Switch-on temperature
|
|
01160.0-00
|
NC - open on rise
|
59°F / 15°C (± 9°F / 5K tolerance)
|
41°F / 5°C (± 9°F / 5K tolerance)
|
|
01160.0-01
|
NC - open on rise
|
77°F / 25°C (± 9°F / 5K tolerance)
|
59°F / 15°C (± 9°F / 5K tolerance)
|
|
01161.0-00
|
NO - close on rise
|
122°F / 50°C (± 11°F / 6K tolerance)
|
104°F / 40°C (± 12.6°F / 7K tolerance)
|
|
01161.0-01
|
NO - close on rise
|
140°F / 60°C (± 11°F / 6K tolerance)
|
122°F / 50°C (± 12.6°F / 7K tolerance)
|
|
01161.0-02
|
NO - close on rise
|
95°F / 35°C (± 11°F / 6K tolerance)
|
77°F / 25°C (± 12.6°F / 7K tolerance)
|
|
