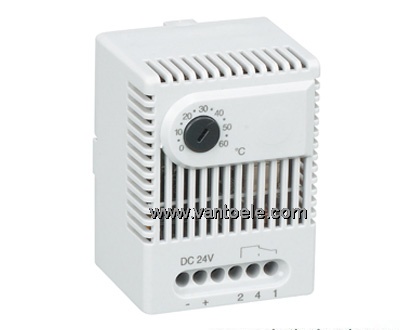

Electronic Thermostat
Product name : Electronic Thermostat
Item : ET 011 DC 24V
Details :
|
|
- High DC breaking capacity
- Low hysteresis
- Adjustable temperature
- Change-over contact
- Clip fixing
Electronic thermostat for regulating high performance DC 24V equipment. Heating or cooling appliances as well as signal devices can be switched via the potential free change-over contact. In comparison to mechanical thermostats, the ET 011 has a low hysteresis making the switching point and setting accuracy more precise.
|
Technical Data
|
Switch temperature difference
|
approx. 3K
|
|
Sensor element
|
PTC
|
|
Contact type
|
change-over
|
|
Contact resistance
|
< 10mOhm
|
|
Service life
|
> 100 000 cycles
|
|
Max. switching capacity
|
28VDC, 16A
|
|
EMC
|
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
|
|
Connection
|
5-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
|
|
Mounting
|
clip for 35mm DIN rail, EN 50022
|
|
Casing
|
plastic according to UL94 V-0, light grey
|
|
Dimensions/ weight
|
67 x 50 x 46mm approx. 80g
|
|
Fitting position
|
vertical
|
|
Operating/Storage temperature
|
0 to +60°C (+32 to +140°F) / -45 to +80°C (-49 to +176°F)
|
|
Protection type
|
IP20
|
|
Part No.
|
Operating voltage
|
Setting range
|
|
01190.0-00
|
24VDC (20-28VDC)
|
0 to +60°C
|

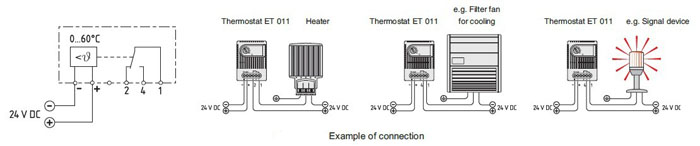

Example of Connection

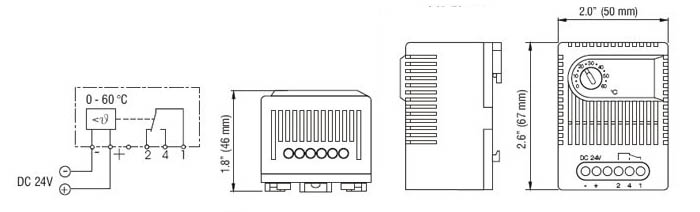

Dimensioned Drawing
 |
