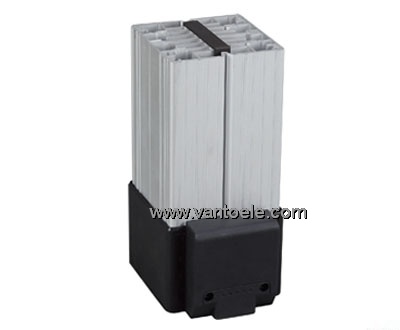

Compact Fan Heater
Product name : Compact Fan Heater
Item : HGL 046
Details :
|
|
- Compact Design
- Clip fixing
- Long service life
- Maintenance free
- Temperature safety cut-out
Compact fan heater prevents formation of condensation. The integrated high performance axial fan provides forced air circulation and so guarantees an even temperature in enclosures. With internal terminal connector.
|
Technical Data
|
Heating element
|
resistance heater
|
|
Temperature safety cut-out
|
to protect against overheating in case of fan failure
|
|
Heater body
|
anodised extruded aluminium profile
|
|
Surface temperature
|
max. 75°C (400W)
|
|
Axial fan, ball bearing
|
Airflow, free flow
|
|
AC: 45m³/h (50HZ) or 54m³/h (60Hz)
|
|
DC: 54m³/h
|
|
service life 50 000h at 25°C (77°F)
|
|
Connection
|
internal connection terminal 1.5mm² with clamping torque 0.8Nm max.
|
|
Connection casing
|
plastic according to UL94 V-0,black
|
|
Mounting
|
clip for 35mm DIN rail, EN 50022
|
|
Fitting position
|
vertical
|
|
Operating/Storage temperature
|
-45 to +70 °C (-49 to +158 °F)
|
|
Protection type/Protection class
|
IP20 / I (earthed)
|
|
Part No.
|
Operating voltage
|
Heating capacity
|
Length (L)
|
Weight
|
|
04640.0-00
|
230VAC, 50/60Hz
|
250W
|
182mm
|
1.10kg
|
|
04641.0-00
|
230VAC, 50/60Hz
|
400W
|
222mm
|
1.40kg
|
|
04640.9-00
|
120VAC, 50/60Hz
|
250W
|
182mm
|
1.10kg
|
|
04641.9-00
|
120VAC, 50/60Hz
|
400W
|
222mm
|
1.40kg
|
|
04640.1-00
|
24VDC
|
250W
|
182mm
|
1.10kg
|
|
04640.2-00
|
48VDC
|
250W
|
182mm
|
1.10kg
|
|
04641.2-00
|
48VDC
|
400W
|
222mm
|
1.40kg
|
Note: In the case of 24VDC and 48VDC the fan heater has to be switched via a relay. For this purpose we recommend our electronic relay SM 010 (Art. No. 01000.0-00 and 01001.0-00).
|
