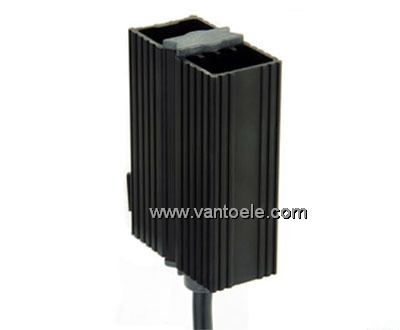

Small PTC Heater
Product name : Small PTC Heater
Item : HGK 047
Details :
|
|
- Dynamic heating up
- Energy saving
- Wide voltage range
- Temperature limting
- Clip fixing
The heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured.
|
Technical Data
|
Heating element
|
PTC resistor, self regulating and temperature limiting
|
|
Heater body
|
extruded aluminium profile, anodised
|
|
Mounting
|
clip for 35mm DIN rail, EN 50022
|
|
Fitting position
|
vertical
|
|
Operating/Storage temperature
|
-45 to +70 °C (-49 to +158 °F)
|
|
Protection type/Protection class
|
IP54 / I (earthed)
|
|
Part. No.
|
Operating voltage
|
Heating capacity*
|
Inrush current max.
|
Length (L)
|
Weight
|
Connection
|
|
04700.0-00
|
110-240V AC/DC**
|
10W
|
1.0A
|
50mm
|
0.10kg
|
3 x 0,5mm² x 300mm
sheathed cable (silicone)
|
|
04701.0-00
|
110-240V AC/DC**
|
20W
|
2.5A
|
60mm
|
0.20kg
|
3 x 0,5mm² x 300mm
sheathed cable (silicone)
|
|
04702.0-00
|
110-240V AC/DC**
|
30W
|
3.0A
|
70mm
|
0.20kg
|
3 x 0,5mm² x 300mm
sheathed cable (silicone)
|
|
04700.9-00
|
110-120 V AC/DC
|
10W
|
1.0A
|
50mm
|
0.10kg
|
3 x AWG 20 x 300mm sheathed cable
|
|
04701.9-00
|
110-120 V AC/DC
|
20W
|
1.5A
|
70mm
|
0.20kg
|
3 x AWG 20 x 300mm sheathed cable
|
|
04702.9-00
|
110-120 V AC/DC
|
30W
|
1.5A
|
100mm
|
0.20kg
|
3 x AWG 20 x 300mm sheathed cable
|
*at 20°C ( 68°F) ambient temperature
**(min. 110V, max 265V) Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

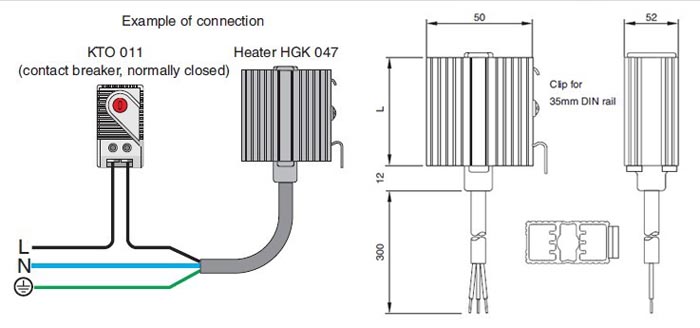

Dimensioned Drawing & Example of Connection
|
