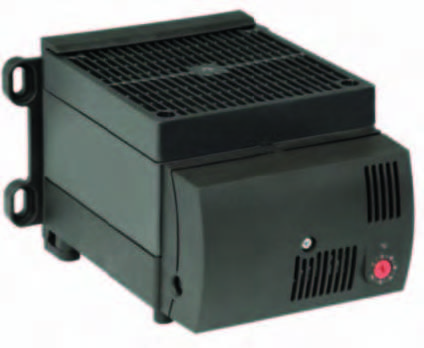

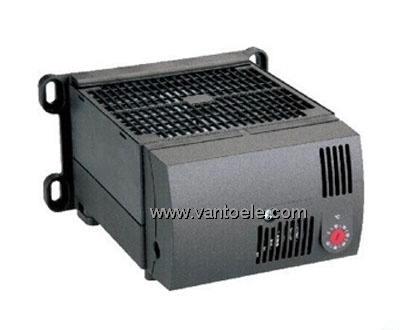

Compact Fan Heater
Product name : Compact Fan Heater
Item : CS 130
Details :
|
|
- Compact design
- Double insulated
- Integrated thermostat(optional)
- Optional clip or screw fixing
The compact high performance fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/ electronic components. The plastic enclosure provides double insulation and acts as protection against contact. The fan heater is available with optional integrated thermostat for temperature control. The CS 130 was designed as a stationary unit for wall fixing. For fixing on the bottom of the enclosure the fan heater CS 030 is recommended.
|
Technical Data
| Heating element |
PTC resistor - temperature limiting |
| Temperature safety cut-out |
to protect against overheating in case of fan failure, automatic reset |
| Axial fan, ball bearing |
airflow 160m³/h, free flow |
| Axial fan, ball bearing |
airflow see table
service life 50,000h at 25℃ (77°F) |
| Connection |
2-pole clamp max. 2.5mm clamping screw torque 0.8Nm max |
| Casing |
plastic according to UL94 V-0,black |
| Mounting |
clip for 35mm DIN rail, EN 60715 or screw fixing (M6) |
| Fitting position |
vertical airflow (air outlet up) ��?other fitting positions possible |
| Dimensions |
182 x 160 x 120mm |
| Weight |
approx. 1.3kg |
| Operating / Storage temperature |
-45 to +70°C (-49 to +158°F) |
| Operating / Storage humidity |
max. 90 % RH (non-condensing) |
| Protection type / Protection class |
IP20 / II (double insulated) |
| Art.No. |
Model |
Operating voltage |
Heating capacity |
Inrush current max. |
Setting range |
| 13060.0-00 |
Fan Heater with thermostat |
230VAC, 50/60Hz |
1,200W |
13A |
0 to +60℃ |
| 13060.0-01 |
Fan Heater without thermostat |
230VAC, 50/60Hz |
1,200W |
13A |
-- |
| 13060.9-00 |
Fan Heater with thermostat |
120VAC, 50/60Hz |
1,200W |
16A |
+32 to +140°F |
| 13060.9-01 |
Fan Heater without thermostat |
120VAC, 50/60Hz |
1,200W |
16A |
-- |
