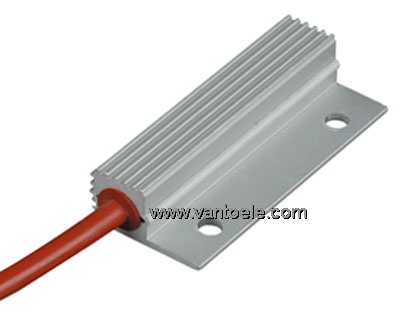

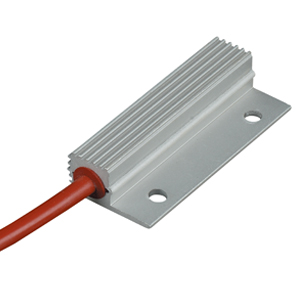

Small PTC Heater
Product name : Small PTC Heater
Item : RC 016
Details :
|
|
- Temperature limiting
- Wide voltage range
- Dynamic heating up
- Energy saving
- Compact
These small heaters are designed to prevent condensation and to ensure a
minimum operating temperature in small enclosures.
|
Technical Data
|
Operating voltage
|
120-240V AC/DC(min. 110V, max. 265V)
|
|
Heating element
|
PTC resistor, self regulating and temperature limiting
|
|
Heater body
|
aluminium, anodised
|
|
Connection
|
screw fixing
|
|
Fitting position
|
variable
|
|
Operating/Storage temperature
|
-45 to +70℃(-49 to +158°F)
|
|
Protection type/Protection class
|
IP32 / II (double insulated)
|
|
*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
|
|

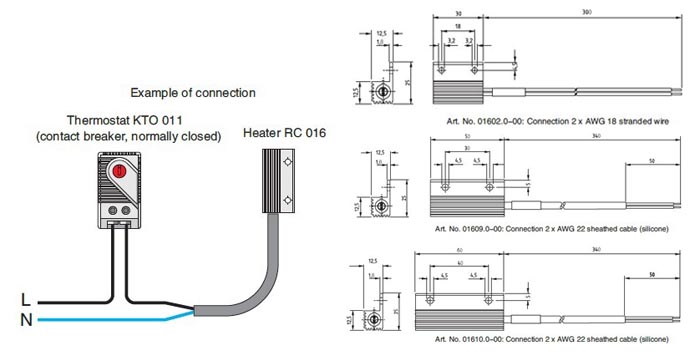

Art. No.
|
Heating capacity |
Inrush current max. |
Surface temperature (approx.) |
Connection
|
Weight (approx. |
|
01602.0.00
|
8W |
2.0A
|
150℃ |
2 x AWG 18 stranded wire |
20g |
|
01609.0-00
|
10W |
2.5A
|
155℃ |
2 x AWG 22 sheathed cable (silicone) |
30g |
|
01610.0-00
|
13W |
3.0A
|
170℃ |
2 x AWG 22 sheathed cable (silicone) |
40g |
