Space-saving Fan Heater

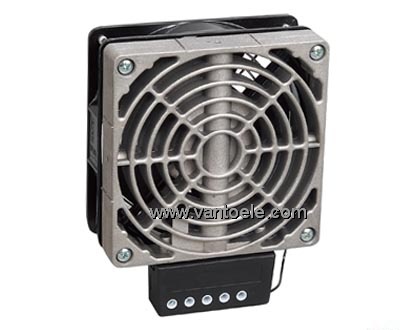

Product name : Space-saving Fan Heater

Item : HV 031/HVL 031

Details :
1190791950
  • Compact
  • Flat design
  • High air through-flow
  • Temperature safety cut-out
  • Clip fixing

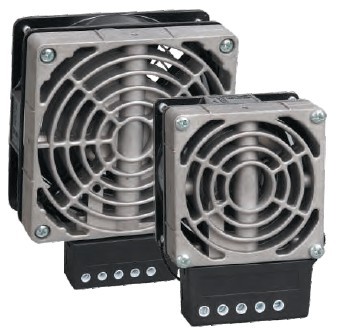

The compact high-performance fan heater prevents formation of condensation in control or switch systems and provides an evenly distributed interior air temperature in enclosures. This fan heater is available without fan (HV 031) as well as with fan (HVL 031).
Technical Data
HV 031
Heater without fan (fan mounting kit included)
HVL 031
Heater with fan
Heating element
high performance cartridge
Temperature safety cut-out
to protect against overheating in case of fan failure
Heater body
die-cast aluminium (glass bead blasted)
Connection
3-pole screw connector 2.5mm clamping torque 0.8Nm max.
Connection casing
plastic according to UL94 V-0,black
Mounting
clip for 35mm DIN rail, EN 60715
Fitting position
horizontal
Operating/Storage temperature
-45 to +70℃ (-49 to +158°F)
Protection type/Protection class IP20 / I (earthed)
HVL 031 only
Axial fan, ball bearing airflow see table service life 50,000h at 25℃(77°F)
Connection(axial fan) 2-pole screw connector 2.5mm (L2/N2)

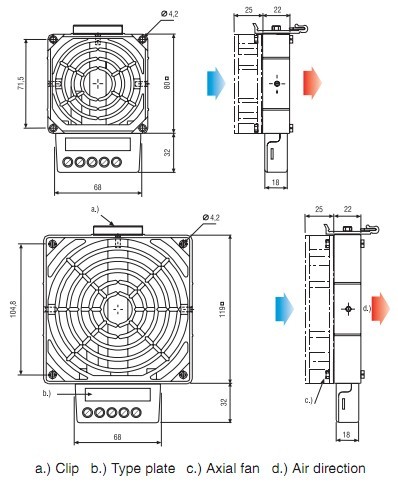

Technical Drawing
