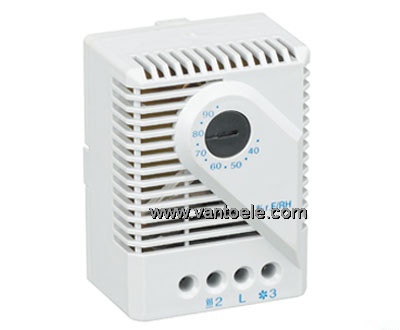

Mechanical Hygrostat
Product name : Mechanical Hygrostat
Item : MFR 012
Details :
|
|
- Adjustable relative humidity
- Change-over contact
- High switching capacity
- Easily accessible terminals
- Clip fixing
The electromechanical hygrostat MRF 012 is designed to control enclosure heaters so that the dew point is raised when a critical relative humidity of 65% is exceeded. In this way condensation and corrosion is effectively prevented.
|
Technical Data
|
Switch difference*
|
4% RH (±3% tolerance)
|
|
Permissible air velocity
|
15m/sec
|
|
Contact type
|
change-over contact
|
|
Contact resistance
|
< 10mOhm
|
|
Service life
|
> 100 000 cycles
|
|
Min. switching capacity
|
20V AC/DC 100 mA
|
|
Max. switching capacity
|
250 VAC, 5 (1) A
|
|
DC 20W
|
|
EMC
|
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
|
|
Connection
|
3-pole terminal for 2.5mm², clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
|
|
Mounting
|
clip for 35mm DIN rail, EN50022
|
|
Casing
|
plastic according to UL94 V-0, light grey
|
|
Dimensions/ weight
|
67 x 50 x 38mm approx. 60g
|
|
Fitting position
|
variable
|
|
Operarting/Storage temperature
|
0 to +60°C (+32 to +140°F) / -20 to +80°C (-4 to +176°F)
|
|
Protection type
|
IP20
|
|
Art. No.
|
Setting range
|
*at 50% RH
|
|
01220.0-00
|
35 to 95% RH
|

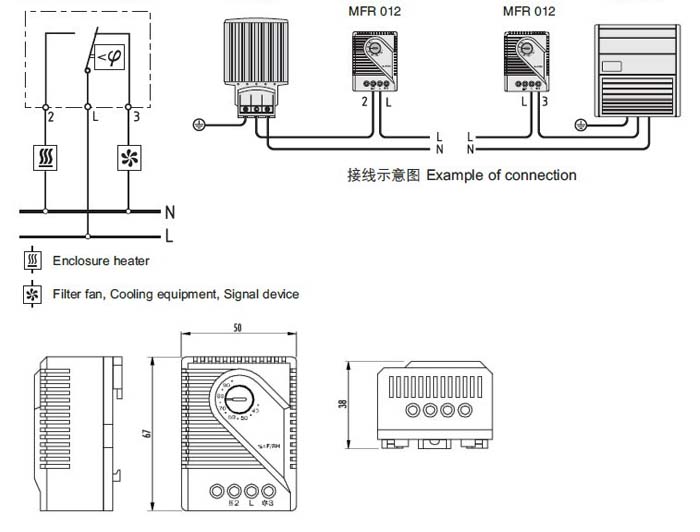

Example of Connection
 |
Thermostat & Heater
Switching Power Supply
