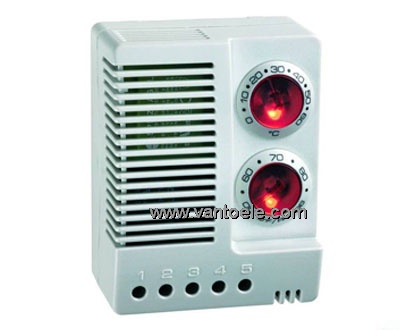

Electronic Hygrothermostat
Product name : Electronic Hygrothermostat
Item : ETF 012
Details :
|
|
- Temperature and humidity adjustable
- Optical operating display (LED)
- High switching capacity
- Clip fixing
The electronic hygrotherm senses the ambient temperature and relative humidity in an enclosure with electric/electronic components, and turns on a heater (or alternatively, a fan) at either set point, helping prevent the formation of condensation in the enclosure. The LED integrated in the adjustment knob on the active controller is lit when the connected device is in operation.
|
Technical Data
|
Switch temperature difference
|
2K (±1K tolerance)at 25℃/77°F (50% RH)
|
|
Switch difference(humidity)
|
4% RH (±1% tolerance) at 25℃ /77°F (50% RH)
|
|
Reaction time (humidity)
|
approx. 5 sec.
|
|
Contact type
|
change-over contact (relay)
|
|
Contact resistance
|
< 10mΩ
|
|
Service life
|
NC: > 50,000 cycles
|
|
NO: > 100,000 cycles
|
|
Max. Switching capacity
(Relay output)
|
NC: 240VAC, 6 (1) A, NO: 240VAC, 8 (1.6) A
|
|
NC: 120VAC, 6 (1) A, NO: 120VAC, 8 (1.6) A, 24VDC, 4A
|
|
EMC
|
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
|
|
Connection
|
5-pole terminal,clamping torque 0.5Nm max.: rigid wire 2.5mm2
stranded wire (with wire end ferrule) 1.5mm2
|
|
Mounting
|
clip for 35mm DIN rail,EN6075 or for exit filter EF 118 Series
|
|
Casing
|
plastic according to UL94 V-0, light grey
|
|
Dimensions/weight
|
77 x 60 x 43mm, approx. 0.20kg
|
|
Fitting position
|
variable
|
|
Operating/Storage temperature
|
0 to +60℃ (+32 to +140°F ) / -20 to +80℃ (-4 to +176°F )
|
|
Protection type
|
IP20
|
|
*Connecting terminal "N" (RF heating resistor) causes the thermal feedback to work and so reduces the switch temperature difference to approx. 0.5K.
|
|
Art. No.
|
Operating voltage*
|
Setting range
|
|
01230.0-00
|
230VAC, 50/60Hz
|
0 to +60 ℃, 50 to 90% RH
|
|
01230.9-00
|
120VAC, 50/60Hz
|
+32 to +140 °F, 50 to 90% RH
|
|
01230.9-01
|
120VAC, 50/60Hz |
0 to +60℃, 50 to 90% RH |

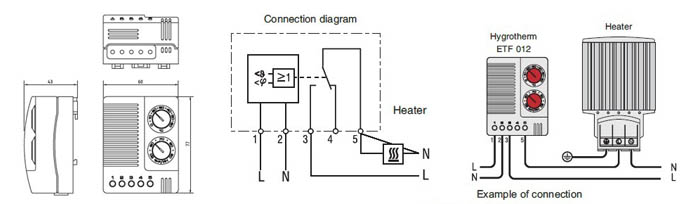

Dimensioned Drawing & Example of Connection
 |
Thermostat & Heater
Switching Power Supply
