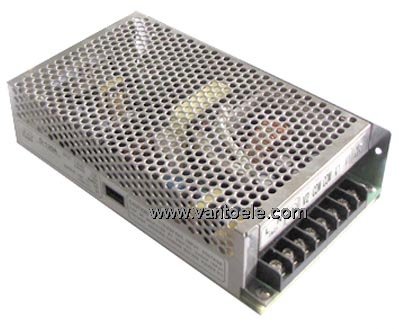

Switching Power Supply
Product name : Switching Power Supply
Item : Dual output D-120W
Details :
Product Description:
|
Model /Specification
|
D-120A
|
D-120B
|
|
CH1
|
CH2
|
CH1
|
CH2
|
|
DC output voltage
|
5V
|
12V
|
5V
|
24V
|
|
Output voltage error (Note2)
|
±2%
|
±6%
|
±2%
|
±7%
|
|
Rated output current
|
12A
|
5A
|
6A
|
4A
|
|
Output current rage
|
2-12A
|
0.5-5A
|
02-10A
|
0.4-4A
|
|
Wave and noise(Note3)
|
60mVp-p
|
120mVp-p
|
60mVp-p
|
150mVp-p
|
|
Inlet stability(Note4)
|
±0.5%
|
±1%
|
±0.5%
|
±1%
|
|
Load stability(Note5)
|
±0.5%
|
±5%
|
±0.5%
|
±6%
|
|
DC output power
|
120W
|
126W
|
|
Efficiency
|
78%
|
80%
|
|
Adjustable range for DC voltage
|
CH1+10,-5%
|
CH1+10,-5%
|
|
AC input voltage range
|
88～132VAC/176-264VAC selected by switch 47-63Hz; 248-370VDC
|
|
Input current
|
2A/115V 1.25A/230V
|
|
AC impulse current
|
Cold-start current 35A
|
|
Leakage current
|
<3.5mA/240VAC
|
|
Overload protection
|
105%～150% Type：PULSING HICCUP SHUTDOWN Reset. auto recovery
|
|
Over-voltage protection
|
CH1:5.75～6.75V
|
|
High-temperature protection
|
……
|
|
Temperature coefficient
|
±0.03%℃(0～50℃) ON+5V OUTPUT
|
|
Setup rise hold up time
|
200ms,50ms,20ms
|
|
Vibration
|
10～500Hz,2G 10min./1cycle,Period for 60min,Each axes
|
|
Withstand voltage
|
Input and output interval：1.5KVAC，Input and enclosure：1.5KVAC，Output and enclosure：0.5KVAC
|
|
Isolation resistance
|
Input and output interval，Input and enclosure，Output and enclosure：500VAC/100M Ohms
|
|
Working temperature and humidity
|
-10℃～+60℃，20%～90%RH
|
|
Store temperature and humidity
|
-20℃～+85℃,10%～95%RH
|
|
Overall dimension
|
199*110*50mm
|
|
Weight
|
0.85Kgs
|
|
Safety standards
|
Meet UL1950 TUV EN60590
|
|
EMC standards
|
CIAPR22(EN55022)class B,IEC801-2,3,4 IEC555-2 Verification
|
|
Note:
1.The testing condition for the parameter above is:230VAC input, rated load,25℃ 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test: The load is from 0% to 100%,others 60%.
6.C3、4、11must be knocked down.
|
