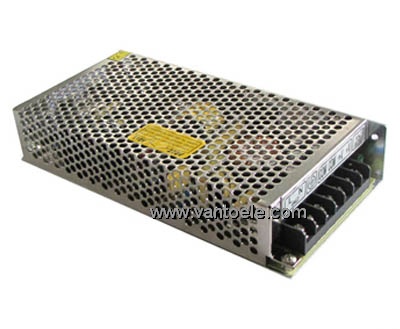

Switching Power Supply
Product name : Switching Power Supply
Item : Single output S-100W
Details :
Product Description:
|
Model / Specification
|
S-100-3
|
S-100-5
|
S-100-7-5
|
S-100-12
|
S-100-15
|
S-100-24
|
S-100-27
|
S-100-48
|
|
DC output voltage
|
3V
|
5V
|
7.5V
|
12V
|
15V
|
24V
|
27V
|
48V
|
|
Output voltage error (Note2)
|
±2%
|
±2%
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
|
Rated output current
|
20A
|
20A
|
13.6A
|
8.5A
|
6.7A
|
4.5A
|
3.7A
|
2A
|
|
Output current rage
|
0-20A
|
0-20A
|
0-13.6A
|
0-8.5A
|
0-6.7A
|
0-4.5A
|
0-3.7A
|
0-2A
|
|
Wave and noise(Note3)
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
|
Inlet stability(Note4)
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.3%
|
±0.3%
|
±0.2%
|
±0.2%
|
±0.2%
|
|
Load stability(Note5)
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.3%
|
±0.3%
|
±0.2%
|
±0.2%
|
±0.2%
|
|
DC output power
|
60W
|
100W
|
102W
|
102W
|
100.5W
|
108W
|
99.9W
|
96W
|
|
Efficiency
|
70%
|
78%
|
80%
|
81%
|
81%
|
84%
|
84%
|
84%
|
|
Adjustable range for DC voltage
|
2.85-3.3V
|
4.75-5.5V
|
6.75-8.25V
|
10.8-13.2V
|
13.5-16.5V
|
21.6-26.4V
|
26-32V
|
43.2-52.8V
|
|
AC input voltage range
|
85～132VAC/180～264VACselected by switch47～63Hz;255-370VDC
|
|
Input current
|
2.4A/115V 1.2A/230V
|
|
AC impulse current
|
Cold-start current 30A/115V 60A/230V
|
|
Leakage current
|
<1mA/240VAC
|
|
Overload protection
|
|
Over-voltage protection
|
……
|
|
High-temperature protection
|
……
|
|
Temperature coefficient
|
±0.03%℃(0～50℃)
|
|
Setup rise hold up time
|
200ms,100ms,30ms
|
|
Vibration
|
10～500Hz,2G 10min./1cycle,Period for 60min,Each axes
|
|
Withstand voltage
|
Input and output interval：1.5KVAC，Input and enclosure：1.5KVAC，Output and enclosure：0.5KVAC
|
|
Isolation resistance
|
Input and output interval，Input and enclosure，Output and enclosure：0500VAC/100M Ohms
|
|
Working temperature and humidity
|
-10℃～+60℃，20%～90%RH
|
|
Store temperature and humidity
|
-20℃～+85℃,10%～95RH
|
|
Overall dimension
|
199*98*38mm
|
|
Weight
|
0.5Kgs
|
|
Safety standards
|
Meet UL1012
|
|
EMC standards
|
……
|
|
Note:
1.The testing condition for the parameter above is:230VAC input, rated load,25℃ 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test: The load is from 0% to 100%,others 60%.
6.C2、3、11must be knocked down.
|
