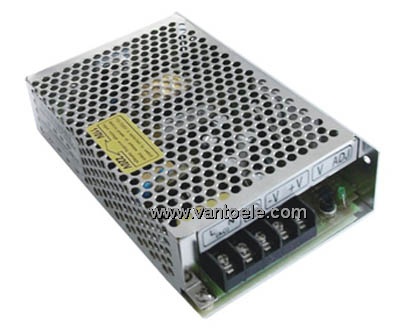

Switching Power Supply

Model /Specification

D-60A

D-60B

CH1

CH2

CH1

CH2

DC output voltage

5V

12V

5V

24V

Output voltage error (Note2)

±2%

±6%

±2%

±5%

Rated output current

46A

3A

3A

1.8A

Output current rage

0.3-6A

0.2-4A

0.3-6A

0.2-2.2A

Wave and noise(Note3)

75mVp-p

150mVp-p

75mVp-p

150mVp-p

Inlet stability(Note4)

±0.5%

±1%

±0.5%

±0.5%

Load stability(Note5)

±0.5%

±4%

±0.5%

±4%

DC output power

56W

58W

Efficiency

73%

76%

Adjustable range for DC voltage

CH1+10,-5%

CH1+10,-5%

AC input voltage range

85～264VAC 47～63Hz;120-370VDC

Input current

2A/115V 1A/230V

AC impulse current

Cold-start current 30A/115V 60A/230V

Leakage current

<1A/240VAC

Overload protection

105%～150% Type：PULSING HICCUP SHUTDOWN Reset. auto recovery

Over-voltage protection

CH1:5.75～6.73V

High-temperature protection

……

Temperature coefficient

±0.03%℃(0～50℃) ON+5V OUTPUT

Setup rise hold up time

800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC

Vibration

10～500Hz,2G 10min./1cycle,Period for 60min,Each axes

Withstand voltage

Input and output interval：3KVAC，Input and enclosure：1.5KVAC，Output and enclosure：0.5KVAC

Isolation resistance

Input and output interval，Input and enclosure，Output and enclosure：0500VAC/100M Ohms

Working temperature and humidity

-10℃～+60℃，20%～90%RH

Store temperature and humidity

-20℃～+85℃,10%～95%RH

Overall dimension

159*97*38mm

Weight

0.55Kgs

Safety standards

Meet UL1012 TUV(En55022) CLASS B, IEC801-2,3,4 IEC555-5

EMC standards

……

Note:
1.The testing condition for the parameter above is:230VAC input, rated load,25℃ 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test: The load is from 0% to 100%,others 60%.
6.C2、3、11must be knocked down.
