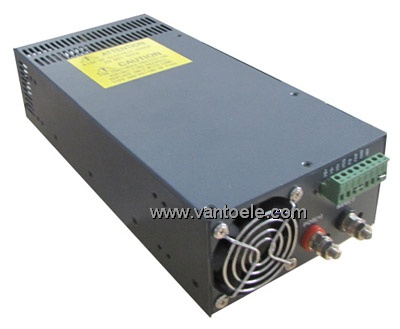

Switching Power Supply
Product name : Switching Power Supply
Item : Single output S-1000W
Details :
Product Description:
|
Model / Specification
|
S-1000-12
|
S-1000-13.5
|
S-1000-15
|
S-1000-24
|
S-1000-27
|
S-1000-48
|
|
DC output voltage
|
12V
|
13.5V
|
15V
|
24V
|
27V
|
48V
|
|
Output voltage error
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
±1%
|
|
Rated output current
|
50A
|
44A
|
40A
|
25A
|
22A
|
12.5A
|
|
Output current rage
|
0-50A
|
0-44A
|
0-40A
|
0-25A
|
0-22A
|
0-12.5A
|
|
Wave and noise
|
150mVp-p
|
150mVp-p
|
150mVp-p
|
150mVp-p
|
150mVp-p
|
200mVp-p
|
|
Inlet stability
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
Load stability(Note5)
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
DC output power
|
600W
|
600W
|
600W
|
600W
|
600W
|
600W
|
|
Efficiency
|
83%
|
84%
|
84%
|
85.5%
|
86.5%
|
87%
|
|
Adjustable range for DC voltage
|
10-13.2V
|
12-15V
|
13.5-18V
|
20-26.4V
|
24-30V
|
41-56V
|
|
AC input voltage range
|
90~132AC/180~264AC
|
|
AC Input current
|
12A/115V 7.5A/230VAC
|
|
AC impulse current
|
25A/115V 50A/230V
|
|
Leakage current
|
<3.5mA/240VAC
|
|
Overload protection
|
105%～135% Type：PULSING HICCUP SHUTDOWN Reset: auto recovery
|
|
Over-voltage protection
|
.........
|
|
Temperature coefficient
|
...........
|
|
Setup rise hold up time
|
±0.03%℃(0~50℃)
|
|
Vibration
|
10～500Hz, 2G 10min./1cycle,Period for 60min,EACH AXES
|
|
Withstand voltage
|
Input and output interval：1.5KvAC,Input and enclosure：1.5KVAC Output and enclosure：0.5KVAC
|
|
Isolation resistance
|
Input and output interval，Input and enclosure，Output and enclosure：500VDC/100M Ohms
|
|
Working temperature and humidity
|
-10℃～+50℃,20%～90%RH
|
|
Store temperature and humidity
|
-20℃～+85℃,10%～95%%RH
|
|
Overall dimension
|
247 x 147 x 63.5mm
|
|
Weight
|
2.1Kgs
|
|
Safety standards
|
Meet UL 1950 requirement (NOT apply for the mark)
|
|
EMC standards
|
CISPR22(EN55022)IEC1000-4,2,3,4,5,6,8,11 IEC100-3-2
|
|
Note:
1.The testing condition for the parameter above is:230VAC input, rated load,25℃ 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test: The load is from 0% to 100%,others 60%.
6.C2、3、11must be knocked down.
|
