Switching Power Supply
Product name : Switching Power Supply

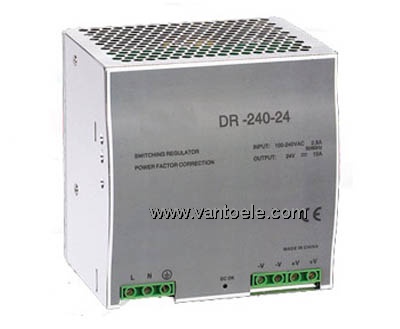

Item : Din Rail Type DR-240W
Details :
Features：
·Universal AC input
·Small volume, low weight, high efficiency
·Protections: short circuit/over load/over voltage
·Cooling by free air convectio
·Can be installed on DIN rail: TS-35/7.5or TS-35/15
·LED indicator for power on
·100% full load burn-in test
·2 Year warranty
|
Model
|
DR-240-24
|
DR-240-36
|
DR-240-48
|
|
Output
|
DC voltage
|
24V
|
36V
|
48V
|
|
Voltage tolerance
|
±1%
|
±1%
|
±1%
|
|
Rated current
|
10A
|
6.6A
|
5A
|
|
Current range
|
0~10A
|
0~6.6A
|
0~5A
|
|
Rated power
|
240W
|
237.6W
|
240W
|
|
Ripple & noise
|
120mvp-p
|
150mvp-p
|
180mvp-p
|
|
DCvoltage ADJ.range
|
±10%
|
±10%
|
±10%
|
|
Input
|
Voltage range
|
90~132VAC/180~264VAC，255~373VDC
|
|
frequency
|
47~63HZ
|
|
AC current
|
2.8A/110VAC，1.4A/220VAC
|
|
efficiency
|
85%
|
85%
|
86%
|
|
Inrush current
|
Cold start current 27A/110VAC，45A/220VAC
|
|
Leakage current
|
< 3.5mA/240VAC
|
|
Protection
|
Over load
|
Rated output power105%~135% start over load protection
|
|
protection type ：rated current limit ，auto-recovery after fault condition is removed
|
|
over voltage
|
30.6~33.2V
|
42.6~44.2V
|
54.8~56.6V
|
|
protection type：cutoff output，recovery after restart power
|
|
over temperature
|
TSW1detect on heatsink of power transistor≥105℃±5℃, start over temperature protection
|
|
Protection mode：cutoff output，auto-recovery after temperature become normal
|
|
Environment
|
Working temp,humidity
|
-20℃~+60℃，20%~90%RH
|
|
Storagetemp,humidity
|
-40℃~+85℃，10%~95%RH non-condensing
|
|
Withstand vibration
|
10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes
|
|
Safety
|
Withstand voltage
|
I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC
|
|
Isolated resistance
|
I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC
|
|
Standard
|
Safety standard
|
Fit UL1012
|
|
EMC standard
|
EN55022，CLASSA
|
|
Others
|
Dimension
|
125.5*125.2*100mm (L*W*H)
|
|
Weight/packing
|
1.2kg/12pcs/15.5kg/0.046m³/1.64CUFT
|
|
Note
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
|
