Switching Power Supply
Product name : Switching Power Supply

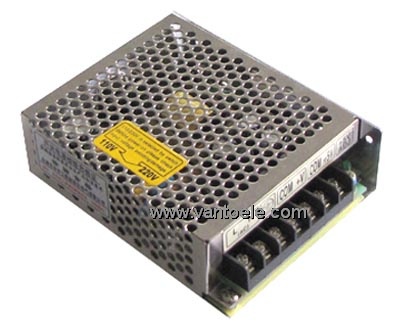

Item : Triple output T-30W
Details :
Product Description:
|
Model / Specification
|
T-30A
|
T-30B
|
|
CH1
|
CH2
|
CH3
|
CH1
|
CH2
|
CH3
|
|
DC output voltage
|
5V
|
12V
|
-5V
|
5V
|
12V
|
-12V
|
|
Output voltage error (Note2)
|
±2%
|
+2,-6%
|
+2,10%
|
±2%
|
+2,-6%
|
±6%
|
|
Rated output current
|
3A
|
1A
|
0.5A
|
3A
|
1A
|
0.5A
|
|
Output current rage
|
0.5-3A
|
0.1-1A
|
0.1-0.5A
|
0.5-3A
|
0.1-1A
|
0.1-0.5A
|
|
Wave and noise(Note3)
|
50mVp-p
|
100mVp-p
|
50mVp-p
|
50mVp-p
|
100mVp-p
|
100mVp-p
|
|
Inlet stability(Note4)
|
±0.5%
|
±1%
|
±1%
|
±0.5%
|
±1%
|
±1%
|
|
Load stability(Note5)
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
DC output power
|
30W
|
33W
|
|
Efficiency
|
70%
|
72%
|
|
Adjustable range for DC voltage
|
CH1+10,-5%
|
CH1+10,-5%
|
|
AC input voltage range
|
85～132VAC/170～264VAC selected by switch 47～63Hz;240～370VDC
|
|
Input current
|
0.8A/115V 0.45A/230V
|
|
AC impulse current
|
Cold-start current 18A/115V 36A/230V
|
|
Leakage current
|
<0.5A/240VAC
|
|
Overload protection
|
105%～150% Type：FOLDBACK Pulsing hiccup shutdown Reset. auto recovery
|
|
Over-voltage protection
|
……
|
|
High-temperature protection
|
……
|
|
Temperature coefficient
|
±0.03%℃(0～50℃) ON+5V OUTPUT
|
|
Setup rise hold up time
|
200ms,100ms,30ms
|
|
Vibration
|
10～500Hz,2G 10min./1cycle,Period for 60min,Each axes
|
|
Withstand voltage
|
Input and output interval：1.5KVAC，Input and enclosure：1.5KVAC，Output and enclosure：0.5KVAC
|
|
Isolation resistance
|
Input and output interval，Input and enclosure，Output and enclosure：0500VAC/100M Ohms
|
|
Working temperature and humidity
|
-10℃～+60℃，20%～90%RH
|
|
Store temperature and humidity
|
-20℃～+85℃,10%～95%RH
|
|
Overall dimension
|
129*98*38mm
|
|
Weight
|
0.4Kgs
|
|
Safety standards
|
Meet UL1012 requirement(not apply for the mark)
|
|
EMC standards
|
Meet FCC Part 15J Conduction class A
|
|
Note:
1.The testing condition for the parameter above is:230VAC input, rated load,25℃ 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test: The load is from 0% to 100%,others 60%.
6.C2、3、11must be knocked down.
|
