Switching Power Supply
Product name : Switching Power Supply

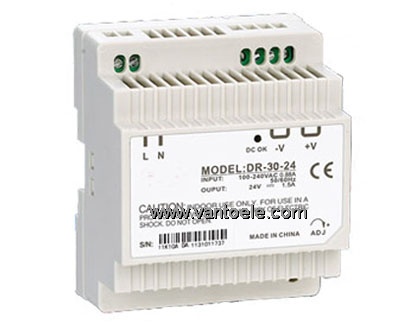

Item : Din Rail Type DR-30W
Details :
Features：
·Universal AC input
·Small volume, low weight, high efficiency
·Protections: short circuit/over load/over voltage
·Cooling by free air convectio
·Can be installed on DIN rail: TS-35/7.5or TS-35/15
·LED indicator for power on
·100% full load burn-in test
·2 Year warranty
|
Model
|
DR-30-5
|
DR-30-12
|
DR-30-24
|
|
Output
|
DC voltage
|
5V
|
12V
|
24V
|
|
Voltage tolerance
|
±2%
|
±1%
|
±1%
|
|
Rated current
|
3A
|
2A
|
1.5A
|
|
Current range
|
0~3A
|
0~2A
|
0~1.5A
|
|
Rated power
|
15W
|
24W
|
36W
|
|
Ripple & noise
|
80mvp-p
|
100mvp-p
|
150mvp-p
|
|
DCvoltage ADJ.range
|
-9%~+10%
|
±10%
|
±10%
|
|
Input
|
Voltage range
|
90~264VAC，127~373VDC
|
|
frequency
|
47~63HZ
|
|
AC current
|
0.88A/110VAC，0.48A/220VAC
|
|
efficiency
|
75%
|
81%
|
83%
|
|
Inrush current
|
Cold start current 15A/115VAC，30A/230VAC
|
|
Leakage current
|
< 1mA/240VAC
|
|
Protection
|
Over load
|
Rated output power105%~150% start over load protection
|
|
protection type：hiccup mode，auto-recovery after fault condition is removed
|
|
Over voltage
|
6.8~8.2V
|
15.6~17.8V
|
30.6~33.2V
|
|
protection type: cut off output voltage, diode clamp
|
|
Environment
|
Working temp,humidity
|
-20℃~+60℃，20%~90%RH
|
|
Storagetemp,humidity
|
-40℃~+85℃，10%~95%RH non-condensing
|
|
Withstand vibration
|
10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes
|
|
Safety
|
Withstand voltage
|
I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC
|
|
Isolated resistance
|
I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC
|
|
Standard
|
Safety standard
|
Fit UL1012
|
|
EMC standard
|
EN55022，CLASSA
|
|
Others
|
Dimension
|
78*93*56mm (L*W*H)
|
|
Weight/packing
|
0.27kg/48pcs/14kg/0.03m³/1.07CUFT
|
|
Note
|
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
|
