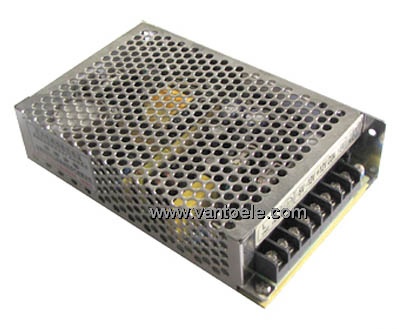

Switching Power Supply

Model / Specification

CH1

CH2

CH3

CH4

DC output voltage

5V

12V

-5V

-12V

Output voltage error (Note2)

±2%

±6%

±5%

±5%

Rated output current

5.5A

2A

0.5A

0.5A

Output current rage

0.5-8A

0.1-3A

0-1A

0-1A

Wave and noise(Note3)

100mVp-p

120mVp-p

100mVp-p

120mVp-p

Inlet stability(Note4)

±0.5%

±1%

±0.5%

±0.5%

Load stability(Note5)

±0.5%

±4%

±1%

±1%

DC output power

60W

Efficiency

70%

Adjustable range for DC voltage

CH1:+10,-5%

AC input voltage range

85～264VAC/47～63VAC;120～370VDC

Input current

1.3A/115V 0.8A/230V

AC impulse current

Cold-start current 18A/115V 36A/230V

Leakage current

<1mA/240VAC

Overload protection

105%～150%Type：Pulsing hiccup shutdown Reset. auto recovery

Over-voltage protection

CH1:5.75～6.75V

High-temperature protection

……

Temperature coefficient

±0.03%℃(0～50℃)

Setup rise hold up time

1.6s,20ms,12ms/115VAC 800ms,20ms,60ms/230VAC

Vibration

10～500Hz,2G 10min./1cycle,Period for 60min,Each axes

Withstand voltage

Input and output interval：3KVAC，Input and enclosure：1.5KVAC，Output and enclosure：0.5KVAC

Isolation resistance

Input and output interval，Input and enclosure，Output and enclosure：0500VAC/100M Ohms

Working temperature and humidity

-10℃～+60℃，20%～90%RH

Store temperature and humidity

-20℃～+85℃,10%～95RH

Overall dimension

159*97*38mm

Weight

0.55Kgs

Safety standards

Meet UL1950

EMC standards

IEC801-2,3,4,IEC555-2

Note:
1.The testing condition for the parameter above is:230VAC input, rated load,25℃ 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test: The load is from 0% to 100%,others 60%.
6.C2、3、11must be knocked down.
