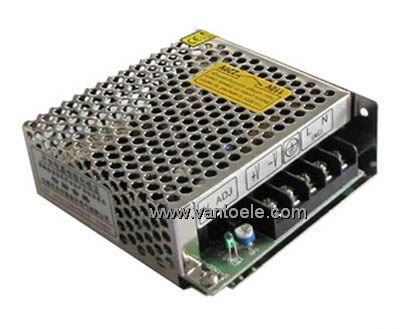

Switching Power Supply
Product name : Switching Power Supply
Item : Single output S-25W
Details :
Product Description:
|
Model /Specification
|
S-25-5
|
S-25-12
|
S-25-15
|
S-25-24
|
|
DC output voltage
|
5V
|
7.5V
|
12V
|
24V
|
|
Output voltage error (Note2)
|
±2%
|
±1%
|
±1%
|
±1%
|
|
Rated output current
|
5A
|
18A
|
12A
|
6A
|
|
Output current rage
|
0-5A
|
0-2.1A
|
0-1.7A
|
0-1.1A
|
|
Wave and noise(Note3)
|
50mVp-p
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
|
Inlet stability(Note4)
|
±0.5%
|
±0.5%
|
±0.3%
|
±0.2%
|
|
Load stability(Note5)
|
±1%
|
±0.5%
|
±0.3%
|
±0.2%
|
|
DC output power
|
25W
|
25.2W
|
25.5W
|
26.4W
|
|
Efficiency
|
72%/115VAC
|
76%/115VAC
|
77%/115VAC
|
80%/115VAC
|
|
Adjustable range for DC voltage
|
+10,-5%
|
±10%
|
±10%
|
±10%
|
|
AC input voltage range
|
85～264VAC/47～63VAC;120～370VDC
|
|
Input current
|
0.6A/115V 0.35A/230V
|
|
AC impulse current
|
Cold-start current 15A/115V 30A/230V
|
|
Leakage current
|
<0.75mA/240VAC
|
|
Overload protection
|
105%～150% Type：PULSING HICCUP SHUTDOWN; Reset; auto recovery
|
|
Over-voltage protection
|
115%～135%
|
|
High-temperature protection
|
……
|
|
Temperature coefficient
|
±0.03%℃(0～50℃)
|
|
Setup rise hold up time
|
800ms,50ms,20ms/115VAC 300ms,50ms,80ms/230VAC
|
|
Vibration
|
10～500Hz,2G 10min./1cycle,Period for 60min,Each axes
|
|
Withstand voltage
|
Input and output interval：3KVAC，Input and enclosure：1.5KVAC，Output and enclosure：0.5KVAC
|
|
Isolation resistance
|
Input and output interval，Input and enclosure，Output and enclosure：0500VAC/100M Ohms
|
|
Working temperature and humidity
|
-10℃～+60℃，20%～90%RH
|
|
Store temperature and humidity
|
-20℃～+85℃,10%～95RH
|
|
Overall dimension
|
99*97*35mm
|
|
Weight
|
0.37Kgs
|
|
Safety standards
|
Meet UL1012,TUV EN60950
|
|
EMC standards
|
Meet IEC801-2,3,4,IEC555-2
|
|
Note:
1.The testing condition for the parameter above is:230VAC input, rated load,25℃ 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test:The load is from 0% to 100%,others 60%.
6.C2、3、11must be knocked down.
|
