Switching Power Supply

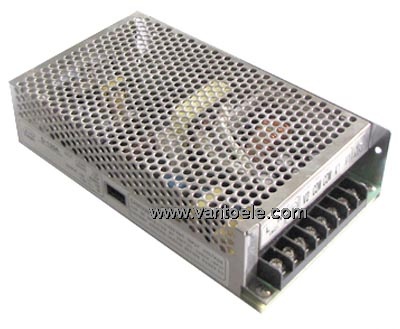

Product name : Switching Power Supply

Item : Quad Output Q-120W

Details :
 Product Description:
Model / Specification
Q-120B
Q-120C
Q-120D
CH1
CH2
CH3
CH4
CH1
CH2
CH3
CH4
CH1
CH2
CH3
CH4
DC output voltage
5V
12V
-5V
-12V
5V
15V
-5V
-15V
5V
12V
24V
-12V
Output voltage error (Note2)
±2%
±6%
±6%
±6%
±2%
+10,-5%
±6%
±10,-5%
±2%
±6%
±6%
±6%
Rated output current
11A
4A
1A
1A
10A
3.5A
1A
1A
8A
2A
2A
1A
Output current rage
2-12A
0.5-5A
0.2-1A
0.2-1A
2-12A
0.5-5A
0.2-1A
0.2-1A
2-12A
0.2-5A
0.2-2A
0.2-1A
Wave and noise(Note3)
80mV
120mV
80mV
120mV
80mV
150mV
80mV
150mV
80mV
120mV
180mV
120mV
Inlet stability(Note4)
±0.5%
±1%
±1%
±1%
±0.5%
±1%
±1%
±1%
±0.5%
±1%
±1%
±1%
Load stability(Note5)
±0.5%
±5%
±5%
±5%
±0.5%
±6%
±5%
±6%
±0.5%
±5%
±5%
±5%
DC output power
120W
122.5W
124W
Efficiency
77%
76%
80%
Adjustable range for DC voltage
CH1+10,-5%
CH1+10,-5%
CH1+10,-5%
AC input voltage range
88~132VAC/176~264VACselected by switch 47~63Hz;240~370VDC
Input current
2.5A/115V 1.25A/230V
AC impulse current
Cold-start current 35A
Leakage current
<3.5mA/240VAC
Overload protection
105%~135% Type:PULSING HICCUP SHUTDOWN Reset. auto recovery
Over-voltage protection
CH1:5.75~6.75V
High-temperature protection
……
Temperature coefficient
±0.03%/OC(0~50℃) ON+5V OUTPUT
Setup rise hold up time
200ms,50ms,20ms
Vibration
10~500Hz,2G 3AXES 10min./1cycle,Period for 60min,Each axes
Withstand voltage
Input and output interval:3KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC
Isolation resistance
Input and output interval,Input and enclosure,Output and enclosure:500VAC/100M Ohms
Working temperature and humidity
-10℃~+60℃,20%~90%RH
Store temperature and humidity
-20℃~+85℃,10%~95%RH
Overall dimension
1999*110*50mm
Weight
0.86Kgs
Safety standards
UL 1012 TUV EN 60950 Approved
EMC standards
CLSPR22(EN55022),class B ,EN5502,IEC801-2,3,4,IEC55-2 Verification
Note:
1.The testing condition for the parameter above is:230VAC input, rated load,25℃ 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test: The load is from 0% to 100%,others 60%.
6.C2、3、11must be knocked down.
