Home > Products > Switching Power Supply > Switching Power Supply

Switching Power Supply

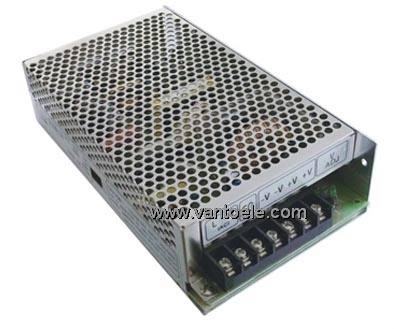

Product name : Switching Power Supply

Item : Triple output T-120W

Details :
Product Description:
AC input voltage range 85-132VAC/170-264VAC 47-63Hz 240-370VDC
Input current 2.5A/115V 1.25A/230V
AC inrush current Cold-start current 20A/115V 40A/230V
Leakage current <3.5mA/240VAC
DC adjustable range ±10% rated output voltage
Over load protection 105-135% hiccup mode,auto-recovery
Over-voltage protection 115-135%
Setup rise lold up time 800ms 20ms 20ms
Withstand voltage
I/P-O/P:3KVAC 1minute
I/P-FG:1.5KVAC 1minute
O/P-O/P:0.5KVAC 1minute
Working temperature -10℃～+60℃.20%-90% RH
Weight/packing 0.9kg.24pcs/21.6kg
type
Output
Error
Range
Efficiency
T-120A
5V,2-12A
±2%
80mV
77%
12V,0.5-5A
±6%
120mV
-5V,0.2-1A
±6%
80mV
T-120B
5V,2-12A
±2%
80mV
77%
12V,0.5-5A
±6%
120mV
-12V,0.2-1A
±6%
120mV
T-120C
5V,2-12A
±2%
80mV
76%
15V,0.5-5A
±10,-5%
150mV
-15V,0.2-1A
±10,-5%
150mV
