Switching Power Supply

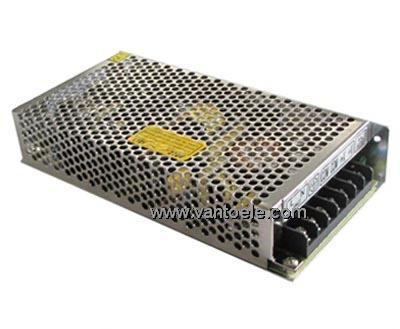

Product name : Switching Power Supply
Item : Single output S-145W
Details :
Product Description:
|
Model / Specification
|
S-145-5
|
S-145-7.5
|
S-145-12
|
S-145-24
|
|
DC output voltage
|
5V
|
7.5V
|
12V
|
24V
|
|
Output voltage error (Note2)
|
±2%
|
±1%
|
±1%
|
±1%
|
|
Rated output current
|
25A
|
18A
|
12A
|
6A
|
|
Output current rage
|
0-25A(Biggest 30A)
|
0-18A(Biggest 21A))
|
0-12A(Biggest 14A)
|
0-6A(Biggest 7A))
|
|
Wave and noise(Note3)
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
|
Inlet stability(Note4)
|
±0.5%
|
±0.5%
|
±0.3%
|
±0.2%
|
|
Load stability(Note5)
|
±0.5%
|
±0.5%
|
±0.3%
|
±0.2%
|
|
DC output power
|
125W
|
135W
|
144W
|
144W
|
|
Efficiency
|
78%
|
80.5%
|
80.5%
|
83.5%
|
|
Adjustable range for DC voltage
|
4.75-5.5V
|
6-8V
|
10.8-13.2V
|
21-28V
|
|
AC input voltage range
|
85～132VAC/180～264VACselected by switch 47～63Hz;255～370VDC
|
|
Input current
|
3.2A/115V 1.6A/230V
|
|
AC impulse current
|
Cold-start current 35A/115V 60A/230V
|
|
Leakage current
|
<1mA/240VAC
|
|
Overload protection
|
125%～165%Type:pulsing hiccup shutdown Reset: auto recovery
|
|
High-temperature protection
|
……
|
|
Temperature coefficient
|
±0.03%℃(0～50℃)
|
|
Setup rise hold up time
|
200ms,100ms,30ms
|
|
Vibration
|
10～500Hz,2G 10min./1cycle,Period for 60min,Each axes
|
|
Withstand voltage
|
Input and output interval：1.5KVAC，Input and enclosure：1.5KVAC，Output and enclosure：0.5KVAC
|
|
Isolation resistance
|
Input and output interval，Input and enclosure，Output and enclosure：500VAC/100M Ohms
|
|
Working temperature and humidity
|
-10℃～+60℃，20%～90%RH
|
|
Store temperature and humidity
|
-20℃～+85℃,10%～95RH
|
|
Overall dimension
|
199*98*38mm
|
|
Weight
|
0.7Kgs
|
|
Safety standards
|
Meet UL 1012 requirement(Not apply for the mark)
|
|
EMC standards
|
Meet FCC Part 15J Conduction Class B
|
|
Note：
1.The testing condition for the parameter above is:230VAC input, rated load,25℃ 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3、Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test: The load is from 0% to 100%,others 60%.
|
