Switching Power Supply

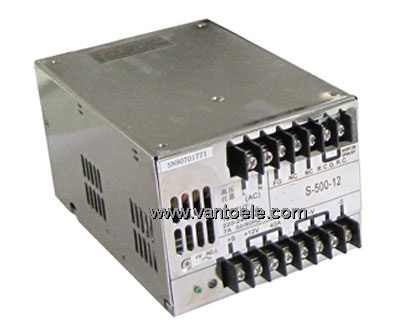

Product name : Switching Power Supply

Item : Single output SP-500W

Details :
Product Description:
Model
S P - 5 0 0 - 2 7
S P - 5 0 0 - 3 6
S P - 5 0 0 - 4 8
Output
DC output voltage
27V
36V
48V
Output voltage error
±1%
±1%
±1%
Rated output current
18A
13.5A
10A
Output current range
0-18A
0-13.5A
0-10A
Output power
480W
486W
480W
Wave and noise
240mVp-p
240mVp-p
240mVp-p
Set up, rise, hold up time
±10%
±10%
±10%
Rated output current
1500ms,50ms,20ms/230VAC.
Output
Input voltage range
90~263VAC 47~63Hz,125~370VDC
AC input current
7A/115V 3.5A/230VAC
Efficiency
84%
85%
86%
Impulse current
Cold-start current 36A/230VAC
Leakage current
<3.5mA/240VAC
Power factor
PF>0.95
Protection
Feature
Overload protection
Rated output power 110%~135% set overload protection
Protection type:pulsing hiccup ,shut down over abnormal condition. auto recovery
Over-voltage protection
15~17V
18~20V
28~30V
Protection type:pulsing hiccup ,shut down abnormal condition . auto recovery
Over-temperature protection
Inner temperature ≥50℃ set fan,≤45℃ stop work,≥85℃set temperature protection
Protection type:Cutting output, temperature recovery.
Condition
Working temperature and humidity
10℃~+60℃;20%~90%RH(Reference derating curve)
Store temperature and humidity
-20℃~+85℃;10%~95%RH (No Condensation)
shock resistance
10~500Hz,2G 10min./1cycle,period for 60 min,each axes
Safety
Withstand voltage
Output and input interval:1.5KVAC Input enclosure:1.5KVAC Output enclosure:0.5KVAC
Isolation resistance
Output and input interval,Input and Output enclosure:100M Ohms/500VDC
Meet standards
Safety standards
Meet UL1012
EMC standards
Meet EN55022,CLASSA
Others
Weight
1.8kg 170*120*93mm(L*W*H)
packing
1.8kg/8pcs/15.5kg
Notes:
1. The testing condition for the parameter above is:230VAC input, rated load,25℃.
2. Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&47uF capacitor short-circuit for interrupting
3. Error,include the setting error, current regulation and voltage regulation
