Proximity Sensor & Switch
Product name : Proximity Sensor & Switch

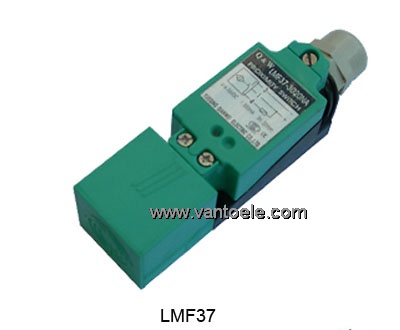

Item : LMF37
Details :
Model explanation of proximity switch
1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(□: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
L: Two-line DC output;□: AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type) |
| |
|
Main features:
|
|
●Compact volume
●high precision of repeated location
●Diversified exterior structures
●Good performance of anti-interference.
●Many output forms
●High on-off frequency.
●Wide voltage range
●Dust proof,vibration proof,water proof and oil proof.
●With short-circuit protection and inverted connecting protection.
●Long service life
|
 |
 |
| Model NO. |
Detection distance |
Detection distance |
Output |
Flush |
| Form |
State |
| LMF37-3015NA |
15mm |
DC6-36V |
NPN |
NO |
Flush |
| LMF37-3015NB |
15mm |
DC6-36V |
NPN |
NC |
Flush |
| LMF37-3015NC |
15mm |
DC6-36V |
NPN |
NO+NC |
Flush |
| LMF37-3015PA |
15mm |
DC6-36V |
PNP |
NO |
Flush |
| LMF37-3015PB |
15mm |
DC6-36V |
PNP |
NC |
Flush |
| LMF37-3015PC |
15mm |
DC6-36V |
PNP |
NO+NC |
Flush |
| LMF37-3015LA |
15mm |
DC6-36V |
Two wire system |
NO |
Flush |
| LMF37 -3015LB |
15mm |
DC6-36V |
Two wire system |
NC |
Flush |
| LMF37 -2015A |
15mm |
AC90-250V |
SCR Control
label silicon |
NO |
Flush |
| LMF37-2015B |
15mm |
AC90-250V |
SCR Control
label silicon |
NC |
Flush |
| LMF37 -2015C |
15mm |
AC90-250V |
SCR Control
label silicon |
NO+NC |
Flush |
| LM37-3020NA |
20mm |
DC6-36V |
NPN |
NO |
Non-flush |
| LMF37-3020NB |
20mm |
DC6-36V |
NPN |
NC |
Non-flush |
| LMF37-3020NC |
20mm |
DC6-36V |
NPN |
NO+NC |
Non-flush |
| LMF37-3020PA |
20mm |
DC6-36V |
PNP |
NO |
Non-flush |
| LMF37-3020PB |
20mm |
DC6-36V |
PNP |
NC |
Non-flush |
| LMF37-3020PC |
20mm |
DC6-36V |
PNP |
NO+NC |
Non-flush |
| LMF37-3020LA |
20mm |
DC6-36V |
Two wire system |
NO |
Non-flush |
| LMF37 -3020LB |
20mm |
DC6-36V |
Two wire system |
NC |
Non-flush |
| LMF37 -2020A |
20mm |
AC90-250V |
SCR Control
label silicon |
NO |
Non-flush |
| LMF37-2020B |
20mm |
AC90-250V |
SCR Control
label silicon |
NC |
Non-flush |
| LMF37 -2020C |
20mm |
AC90-250V |
SCR Control
label silicon |
NO+NC |
Non-flush |
|
