Home > Products > Proximity Sensor & Switch > Proximity Sensor & Switch

Proximity Sensor & Switch

Product name : Proximity Sensor & Switch

Item : LM22-T3

Details :
Model explanation of proximity switch



1. Switch category(LM:inductance type;CM:capactitance type;SM:Hall type; AM:safety explosion-proof type;XM:mimic linear type)
2. Outward appearance code(□: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
L: Two-line DC output;□: AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)
Main features:
●Compact volume
●high precision of repeated location
●Diversified exterior structures
●Good performance of anti-interference.
●Many output forms
●High on-off frequency.
●Wide voltage range
●Dust proof,vibration proof,water proof and oil proof.
●With short-circuit protection and inverted connecting protection.
●Long service life

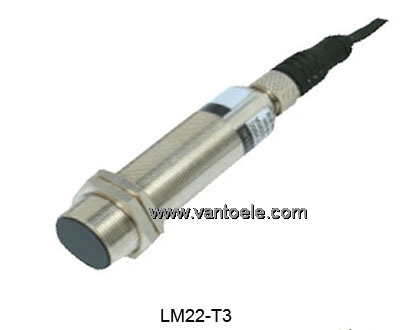

Inductance Type Proximity Switch LM22-T3
Technical Parameters:
Model NO. Detection distance Working voltage Output Flush
Form State
LM22-3007NAT3 7mm DC6-36V NPN NO Flush
LM22-3007NBT3 7mm DC6-36V NPN NC Flush
LM22-3007NCT3 7mm DC6-36V NPN NO+NC Flush
LM22-3007PAT3 7mm DC6-36V PNP NO Flush
LM22-3007PBT3 7mm DC6-36V PNP NC Flush
LM22-3007PCT3 7mm DC6-36V PNP NO+NC Flush
LM22-3007LAT3 7mm DC6-36V Two wire system NO Flush
LM22-3007LBT3 7mm DC6-36V Two wire system NC Flush
LM22-2007AT3 7mm AC90-250V SCR Control
label silicon
NO Flush
LM22-2007BT3 7mm AC90-250V SCR Control
label silicon
NC Flush
LM22-3010NAT3 10mm DC6-36V NPN NO Non-flush
LM22-3010NBT3 10mm DC6-36V NPN NC Non-flush
LM22-3010NCT3 10mm DC6-36V NPN NO+NC Non-flush
LM22-3010PAT3 10mm DC6-36V PNP NO Non-flush
LM22-3010PBT3 10mm DC6-36V PNP NC Non-flush
LM22-3010PCT3 10mm DC6-36V PNP NO+NC Non-flush
LM22-3010LAT3 10mm DC6-36V Two wire system NO Non-flush
LM22-3010LBT3 10mm DC6-36V Two wire system NC Non-flush
LM22-2010AT3 10mm AC90-250V SCR Control
label silicon
No Non-flush
LM22-2010BT3 10mm AC90-250V SCR Control
label silicon
NC Non-flush
