Proximity Sensor & Switch

Product name : Proximity Sensor & Switch

Item : LMF2

Details :
Model explanation of proximity switch

1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(□: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;
L: Two-line DC output;□: AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)
Main features:
●Compact volume
●high precision of repeated location
●Diversified exterior structures
●Good performance of anti-interference.
●Many output forms
●High on-off frequency.
●Wide voltage range
●Dust proof,vibration proof,water proof and oil proof.
●With short-circuit protection and inverted connecting protection.
●Long service life

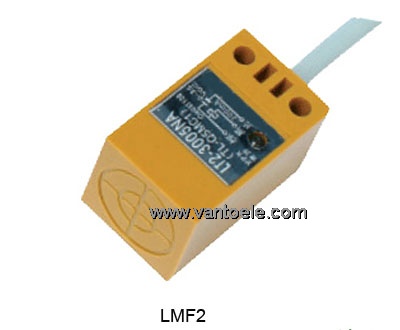

Inductance Type Proximity Switch LMF2 Inductance Type Proximity Switch LMF1
Technical Parameters:
Model NO. Detection distance Detection distance Output Flush
Form State
LMF2-3005NA 5mm DC6-36V NPN NO Flush
LMF2-3005NB 5mm DC6-36V NPN NC Flush
LMF2-3005PA 5mm DC6-36V PNP NO Flush
LMF2-3005PB 5mm DC6-36V PNP NC Flush
LMF2-3005LA 5mm DC6-36V Two wire system NO Flush
LMF2 -3005LB 5mm DC6-36V Two wire system NC Flush
LMF2 -2005A 5mm AC90-250V SCR control
lable silicon
NO Non-flush
