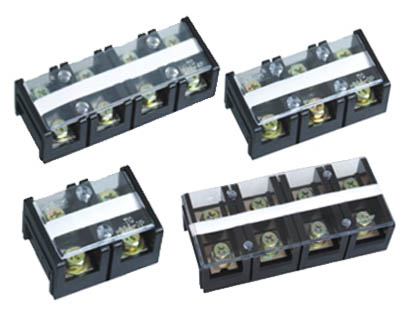

Fixed Terminal Block

Product name : Fixed Terminal Block

Item : TC Series

Details :

Summarize and trait:

Sliecting thermosetting plastic, safety factor of big current is more reliable. Board type screw crinm commecting technology as structure parts. Rated AC voltage 600V. Rated current of connecting conduct piece with seven specifications of 60、100、150、200、300、400、600A. The cross-section 10-300mm², which is the biggest closure flow terminal. It can be divided into 3P、4P flat bolt installation according to arrangcmcnt, it will be more reliable with OT、UT termination point for connecting big current in different kind electric device.


TC-603 TC-604 TC-1002
wire section: 14mm² wire section: 14mm² wire section: 22mm²
rated current: 60A rated current: 60A rated current: 100A
voltage: 600V voltage: 600V voltage: 600V
wide/high/thick: 85/43/32.5mm wide/high/thick: 112/43/32.5mm wide/high/thick: 68/54.5/37.8mm
TC-1003 TC-1004 TC-1503
wire section: 22mm² wire section: 22mm² wire section: 60mm²
rated current: 100A rated current: 100A rated current: 150A
voltage: 600V voltage: 600V voltage: 600V
wide/high/thick: 104/55.4/37.8mm wide/high/thick: 136/55.5/37.8mm wide/high/thick: 117/67/40.8mm
TC-1504 TC-2003 TC-2004
wire section: 60mm² wire section: 100mm² wire section: 100mm²
rated current: 150A rated current: 200A rated current: 200A
voltage: 600V voltage: 600V voltage: 600V
wide/high/thick: 157/67/40.8mm wide/high/thick: 134/72/46.5mm wide/high/thick: 177/72/46.5mm
TC-3003 TC-3004 TC-4003
wire section: 150mm² wire section: 150mm² wire section: 200mm²
rated current: 300A rated current: 300A rated current: 400A
voltage: 600V voltage: 600V voltage: 600V
wide/high/thick: 164/90.5/50.6mm wide/high/thick: 220/98.4/50.6mm wide/high/thick: 164/90.5/50.6mm
TC-4004 TC-6003 TC-6004
wire section: 200mm² wire section: 300mm² wire section: 300mm²
rated current: 400A rated current: 600A rated current: 600A
voltage: 600V voltage: 600V voltage: 600V
wide/high/thick: 220/89.4/50.6mm wide/high/thick: 205/100/75mm wide/high/thick: 275/100/75mm
