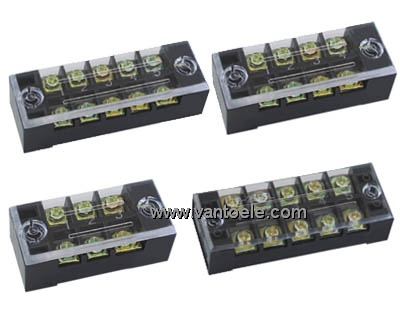

Fixed Terminal Block

Product name : Fixed Terminal Block

Item : TB Series

Details :
TB-1503 TB-1504 TB-1505
wire section: 0.5-1.5mm² wire section: 0.5-1.5mm² wire section: 0.5-1.5mm²
rated current: 15A rated current: 15A rated current: 15A
voltage: 600V voltage: 600V voltage: 600V
wide/high/thick: 46.5/22/17.5mm wide/high/thick: 55.5/22/17.5mm wide/high/thick: 63/22/17.5mm
TB-1506 TB-1510 TB-1512
wire section: 0.5-1.5mm² wire section: 0.5-1.5mm² wire section: 0.5-1.5mm²
rated current: 15A rated current: 15A rated current: 15A
voltage: 600V voltage: 600V voltage: 600V
wide/high/thick: 73.5/22/17.5mm wide/high/thick: 103/22/17.5mm wide/high/thick: 128.5/22/17.5mm
TB-2503 TB-2504 TB-2505
wire section: 0.5-2.5mm² wire section: 0.5-2.5mm² wire section: 0.5-2.5mm²
rated current: 25A rated current: 25A rated current: 25A
voltage: 600V voltage: 600V voltage: 600V
wide/high/thick: 55/30/19mm wide/high/thick: 67/30/19mm wide/high/thick: 67/30/19mm
TB-2506 TB-2510 TB-2512
wire section: 0.5-2.5mm² wire section: 0.5-2.5mm² wire section: 0.5-2.5mm²
rated current: 25A rated current: 25A rated current: 25A
voltage: 600V voltage: 600V voltage: 600V
wide/high/thick: 91/30/19mm wide/high/thick: 140/30/19mm wide/high/thick: 163/30/19mm
TB-3503 TB-3504 TB-3506
wire section: 0.5-2.5mm² wire section: 0.5-2.5mm² wire section: 0.5-2.5mm²
rated current: 35A rated current: 35A rated current: 35A
voltage: 600V voltage: 600V voltage: 600V
wide/high/thick: 50/30/19mm wide/high/thick: 67/30/19mm wide/high/thick: 91/30/19mm
TB-3512 TB-4503 TB-4504
wire section: 0.5-2.5mm² wire section: 1.5-4mm² wire section: 1.5-4mm²
rated current: 35A rated current: 45A rated current: 45A
voltage: 600V voltage: 600V voltage: 600V
wide/high/thick: 163/30/19mm wide/high/thick: 70/38/23.5mm wide/high/thick: 85/38/23.5mm
TB-4505 TB-4506 TB-4512
wire section: 1.5-4mm² wire section: 1.5-4mm² wire section: 1.5-4mm²
rated current: 45A rated current: 45A rated current: 45A
voltage: 600V voltage: 600V voltage: 600V
wide/high/thick: 102.5/38/23.5mm wide/high/thick: 120.5/38/23.5mm wide/high/thick: 222/38/23.5mm
TB-60A/3P TB-60A/4P 6P/12P TB-100A/3P/4P 6P/12P
wire section: 2.5-6mm² wire section: 2.5-6mm² wire section: 2.5-10mm²
rated current: 60A rated current: 60A rated current: 100A
voltage: 600V voltage: 600V voltage: 600V
wide/high/thick: 125/34/22mm wide/high/thick: 200/34/22mm wide/high/thick: 170/39/23mm
