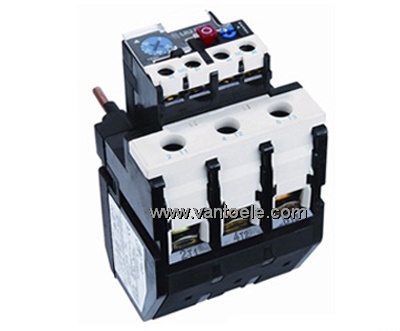

LR2-D Series Thermal Relay

APPLICATION
This series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-93A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation & can be pluged in LC1-D series AC contact. It is the most advanced thermal relay in the nineties in the world.
CHARACTERISTICS
a. Fundamental parameter of the main circuit
(a). Rated insulation voltage 660V.
(b). Rated working current 25, 36, 93A.

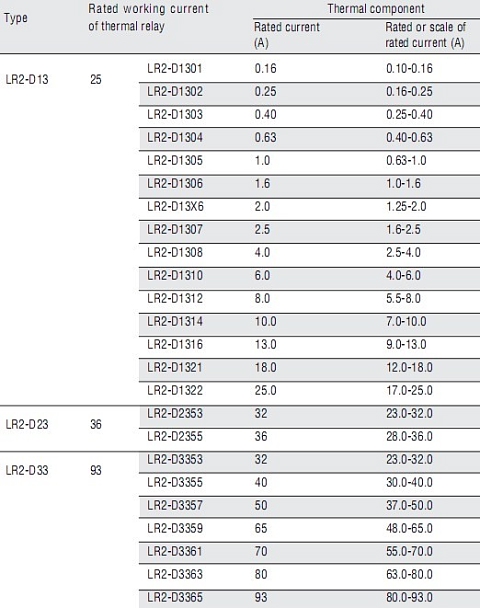

(c). The regulator seal of rated setting current and setting. (d). Current of the thermal component
b. Auxiliary circuit
(a). There are one pair of N/O and N/C contact with electric insuation. (b). Rated insulation voltage 500V.
(c). Rated frequency 50-60Hz.
(d). Use group, rated working voltage, appoint thermal current and rated current.
